Tank Dimensional Profile Survey

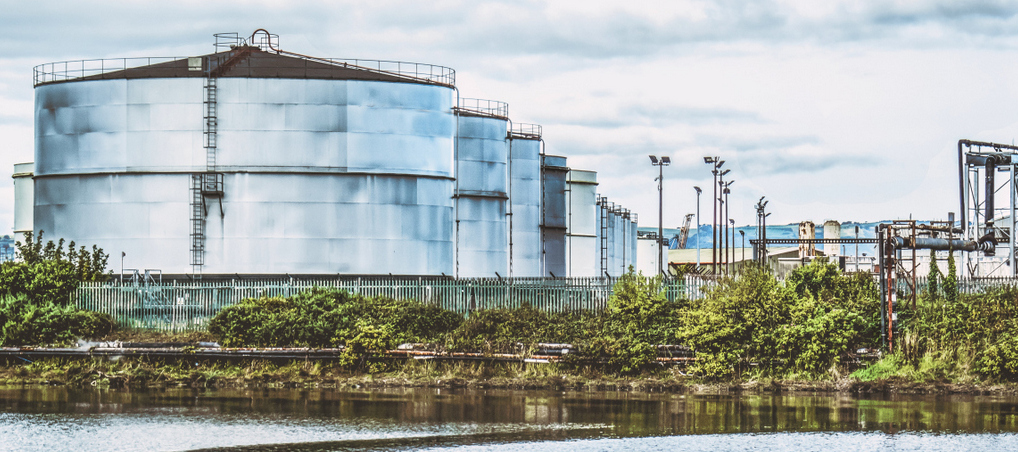

Tank Dimensional Profile Survey – Storage tanks require periodic surveys to monitor long and short-term movements, settlements of the foundation and other deformations such as tank shell deformation due to liquid head pressure, unproportionate sand and backfill materials or tank foundation distortion.

Tank Dimensional Profile Survey

We specialise in analysing storage tanks and provide highly accurate shell deformation analysis, surveys for tank bottom and foundation settlement, shell roundness, structural column verticality, and more. By providing a geometric evaluation of the tank in its current state, we can provide 3D models and layout drawings of the floor, shell, roof structure, and attached infrastructure. This data can assist with assessment of tank integrity, risk analysis, design of floating roofs and ensuring they fit, and much more.

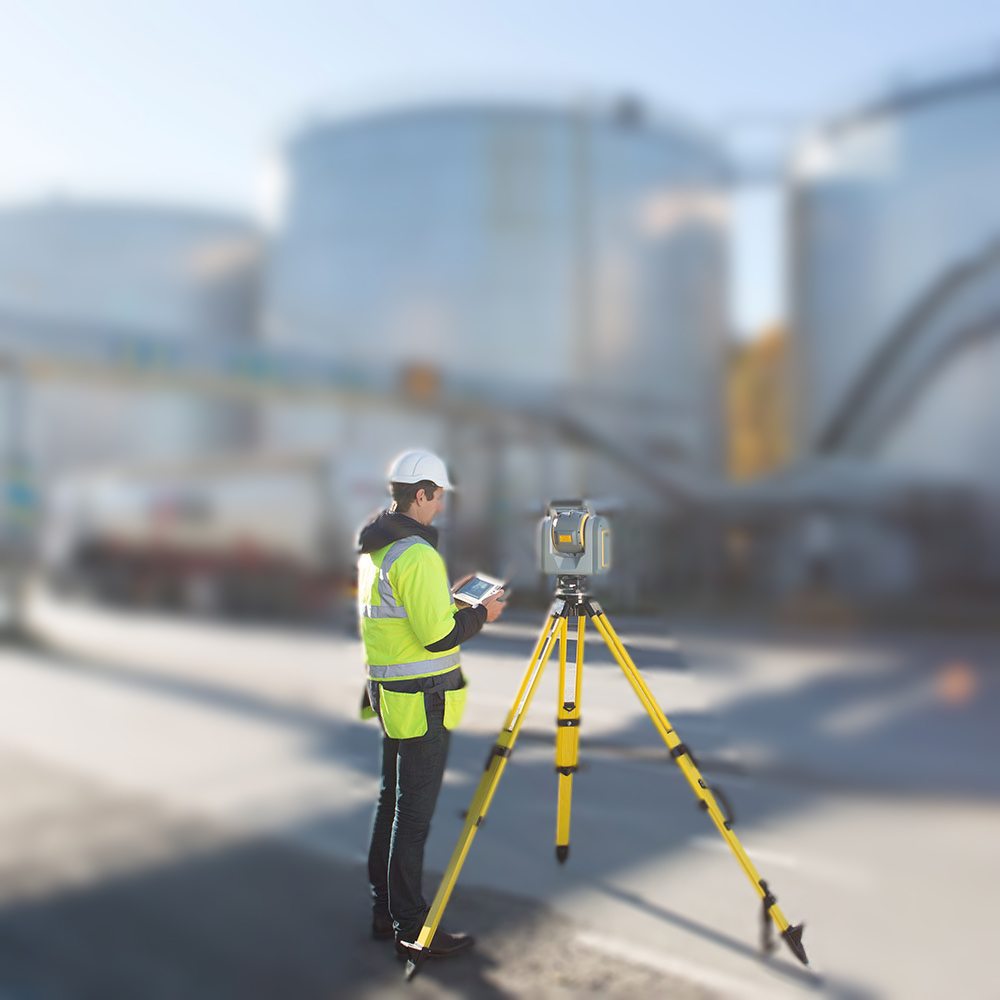

Our surveyors use the latest laser scanning technology, providing fast and accurate results.
Both the API 653 inspection code and industry standards state that all bulk storage tanks should be inspected at minimum intervals of 5 years for in-service (on-stream) inspection and 10 years for out-of-service (off-stream) inspection.

Ovality / Out of Roundness.
Verticality / Out of Plumbness
Shell Settlement.
Edge Settlement.
Shell optical calculations.
Rim space calculations.
Offset graphs (Adjacent and opposite stations).
Ring offset graphs of the tank shell.

Tank Dimensional Profile Survey – The TSS Advantage

Tank Synergy Services (TSS), an international group engaged in Engineering, Inspection, and Industrial Consultation and other related services to provide a comprehensive solution to our customers all over the world.

We have the experience, expertise and management systems to proactively deliver effective, efficient and most competitive unequalled service to our clients.

We are continually looking beyond clients’ expectations to deliver market-leading services whosesoever they are needed. As the leader in providing specialized and multidiscipline business solutions that improve the quality, safety, and productivity and reduce risk. Our services add significant value to our customers’ operations and ensure business sustainability.

TSS offers a complete portfolio of solutions that address a range of needs, from asset integrity management to statutory compliance-based inspections. We place strong importance on technological development and innovation, as well as having a clear understanding of regulatory requirements.
